iRay Technology · Dental X-Ray Imaging System

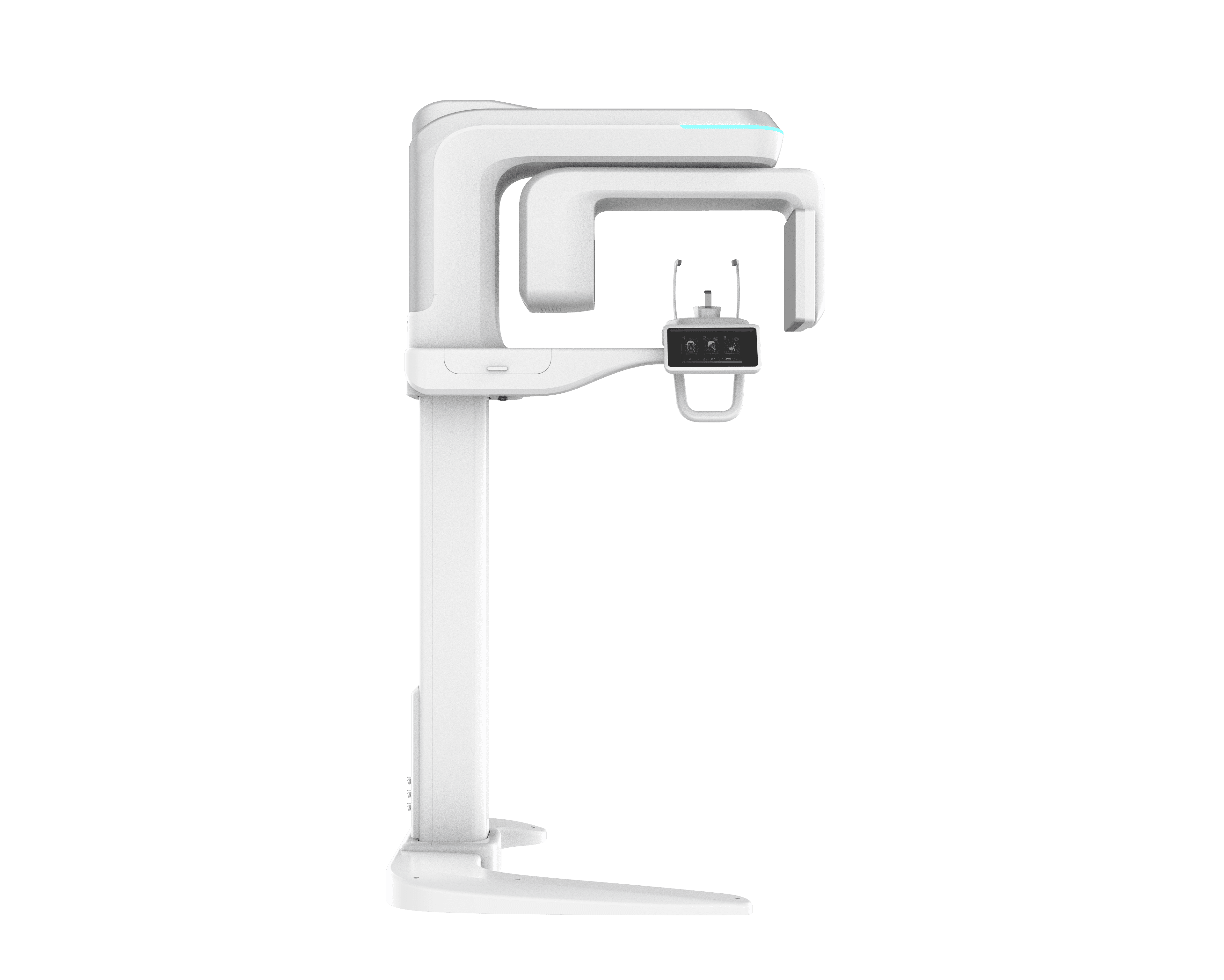

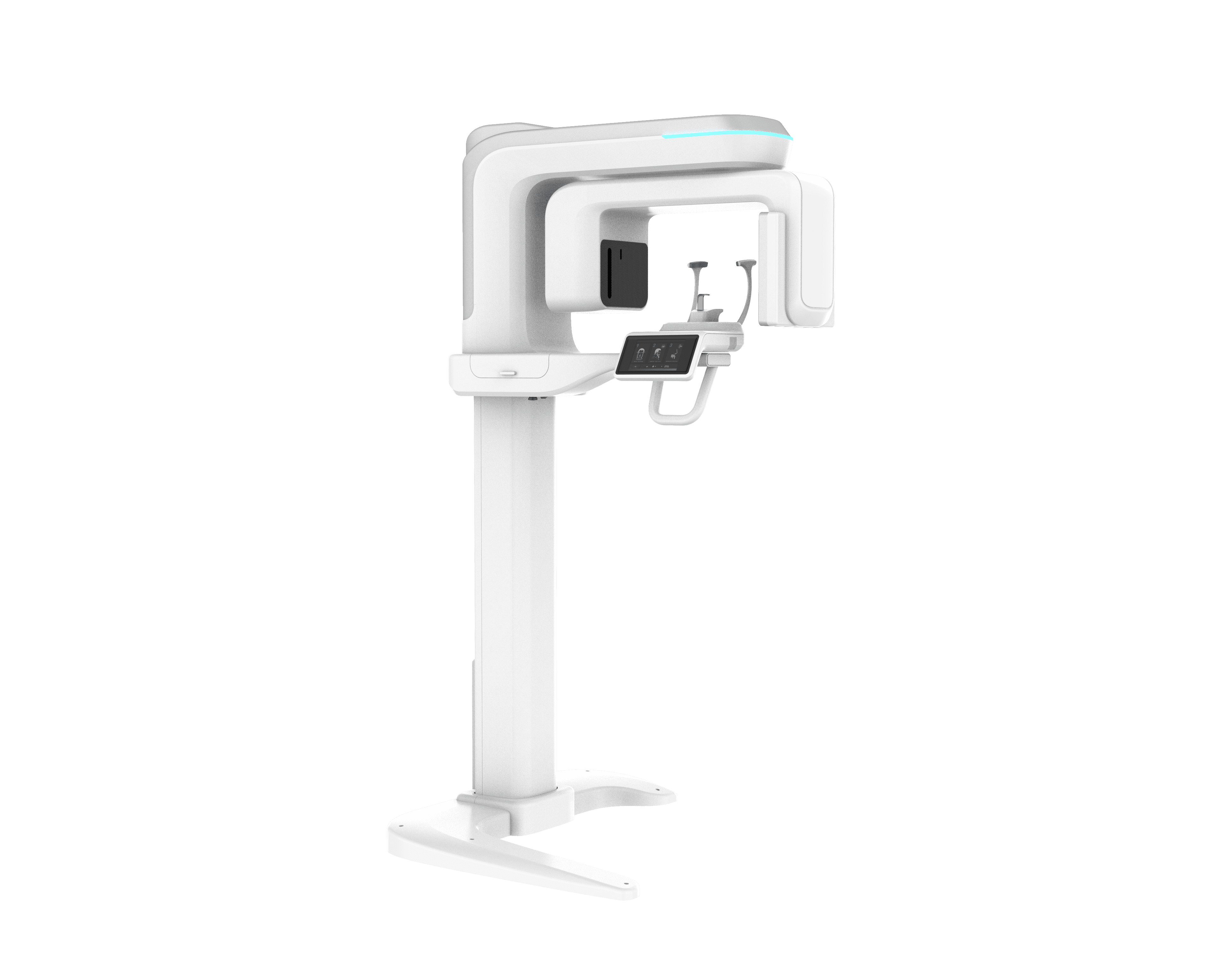

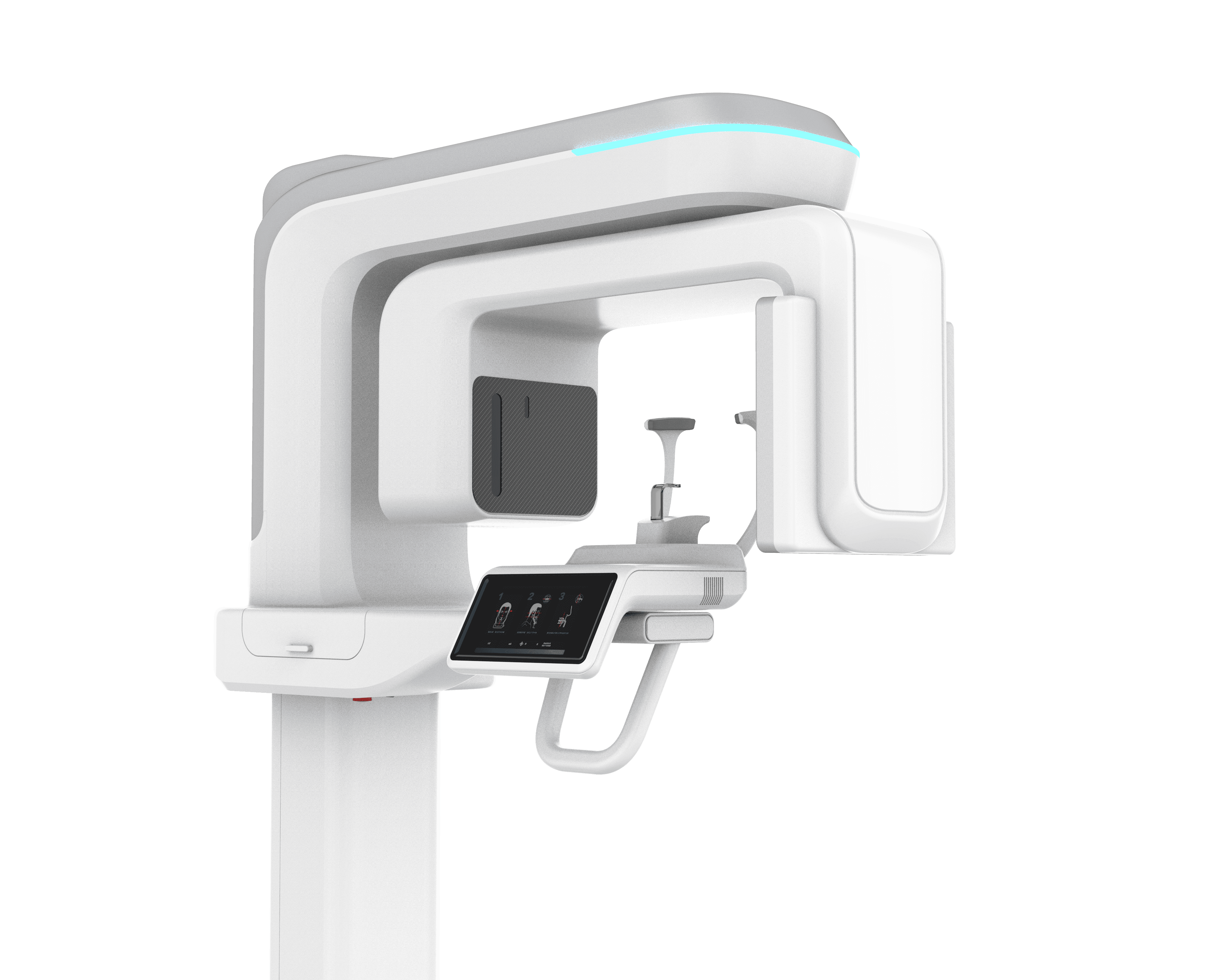

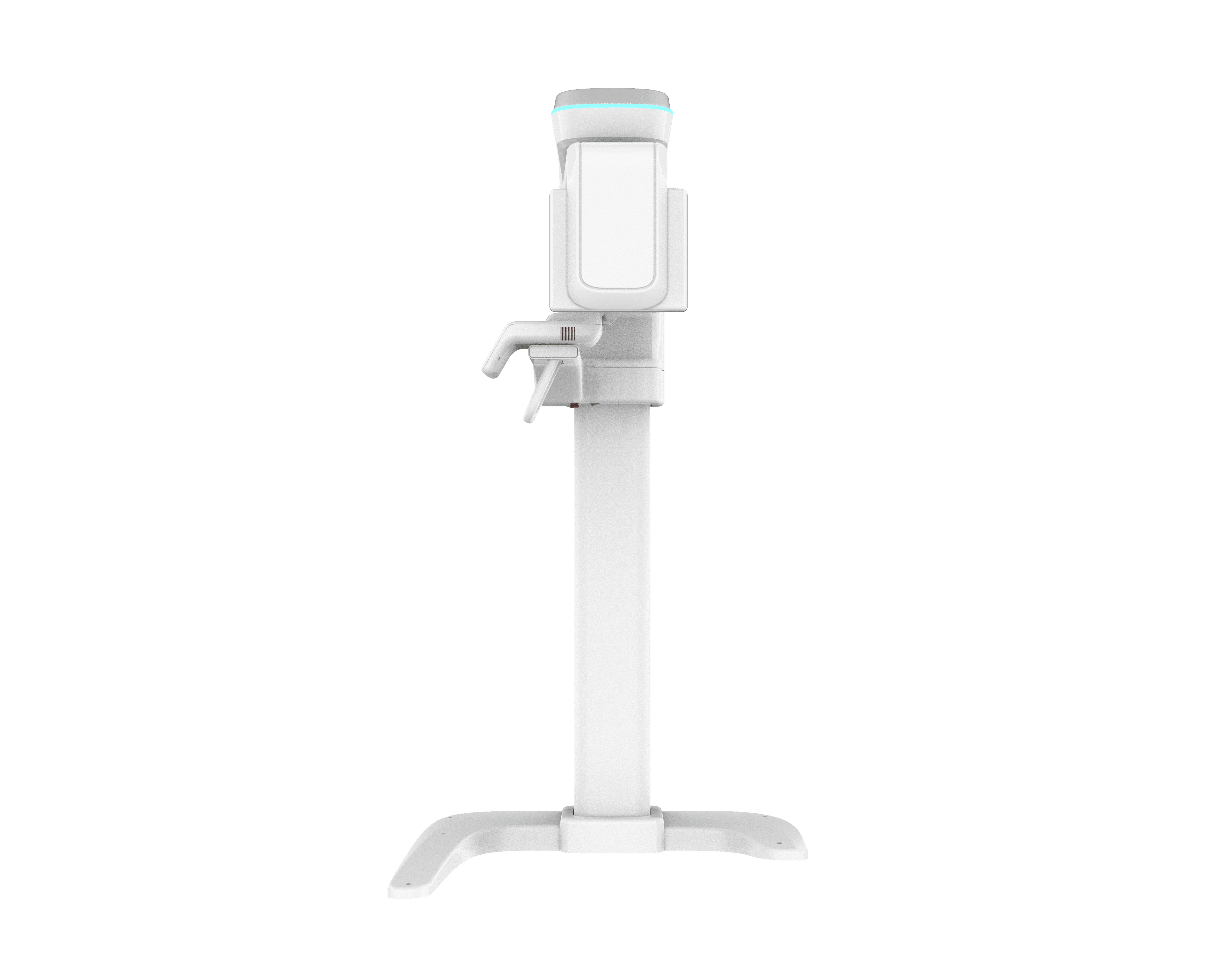

iDT901 Dental CBCT
- 3-in-1: CBCT + Panoramic (PAN) + Cephalometric (CEPH)
- FOV up to 23×18 cm — full skull imaging in a single scan
- High-resolution 70 μm voxels at 5×5 FOV for endo detail
- Ultra-fast scanning — CBCT in 16s, Pano in 12s
- 250×300 mm flat-panel detector · 16-bit AD conversion
- 1.2 kW high-power generator · 60–120 kVp · 1–20 mA
- Open design supports wheelchair-bound patients
- Metal Artifact Reduction (MAR) software included
View Brochure (PDF)Key Features

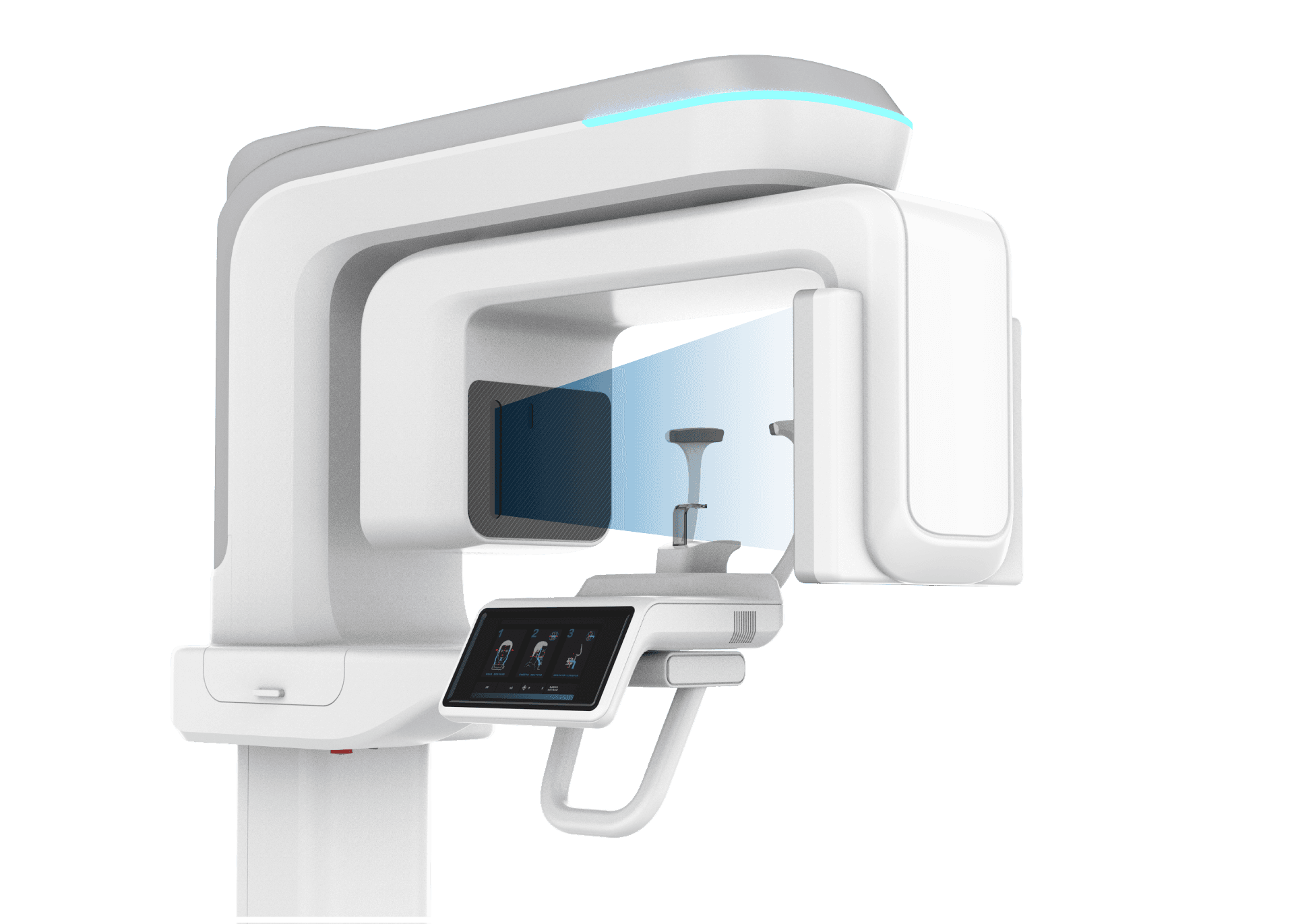

3-in-1 Imaging System
Combines CBCT, panoramic, and cephalometric modes in a single compact unit with conventional CBCT footprint — no separate machines needed.

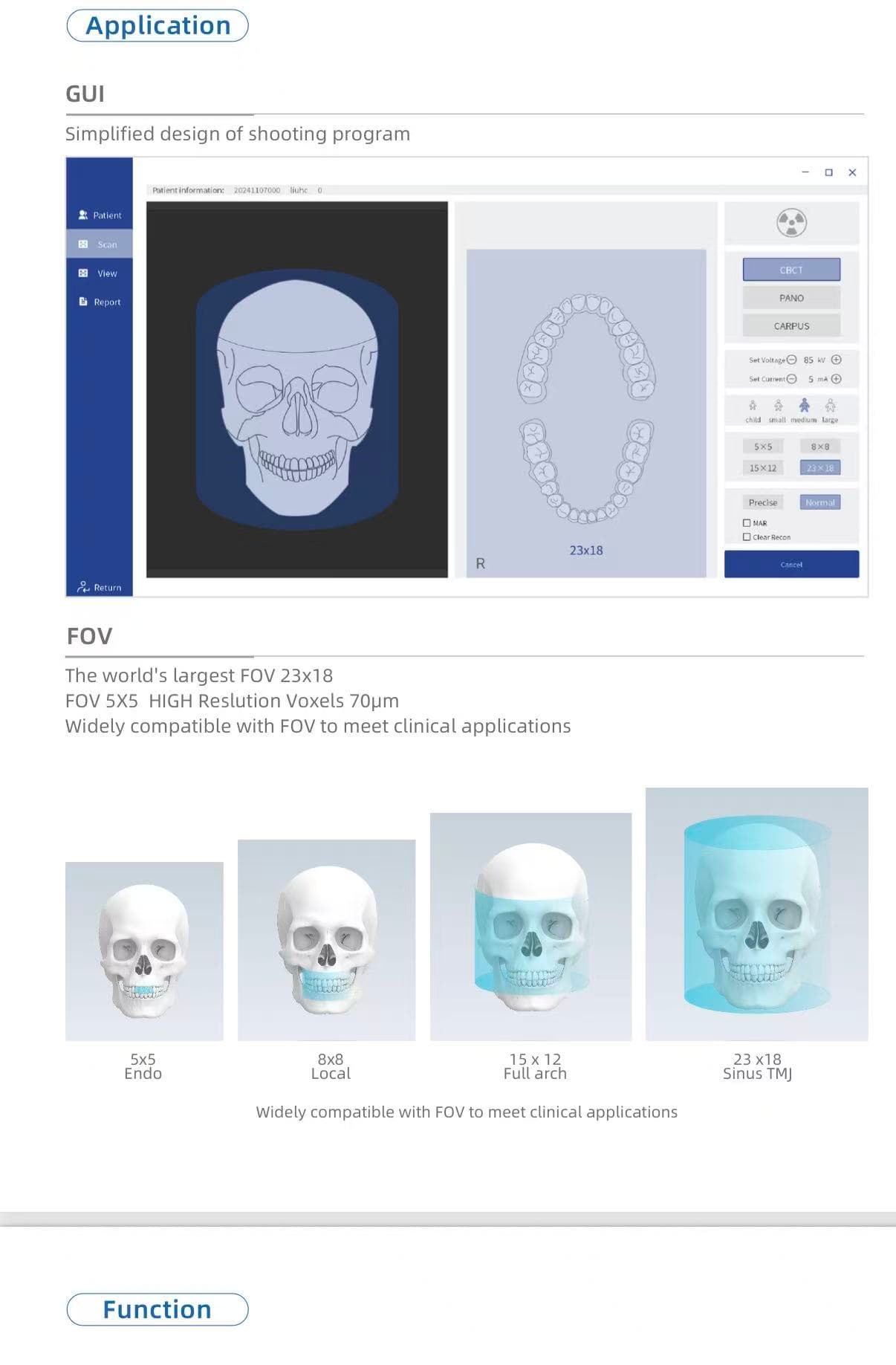

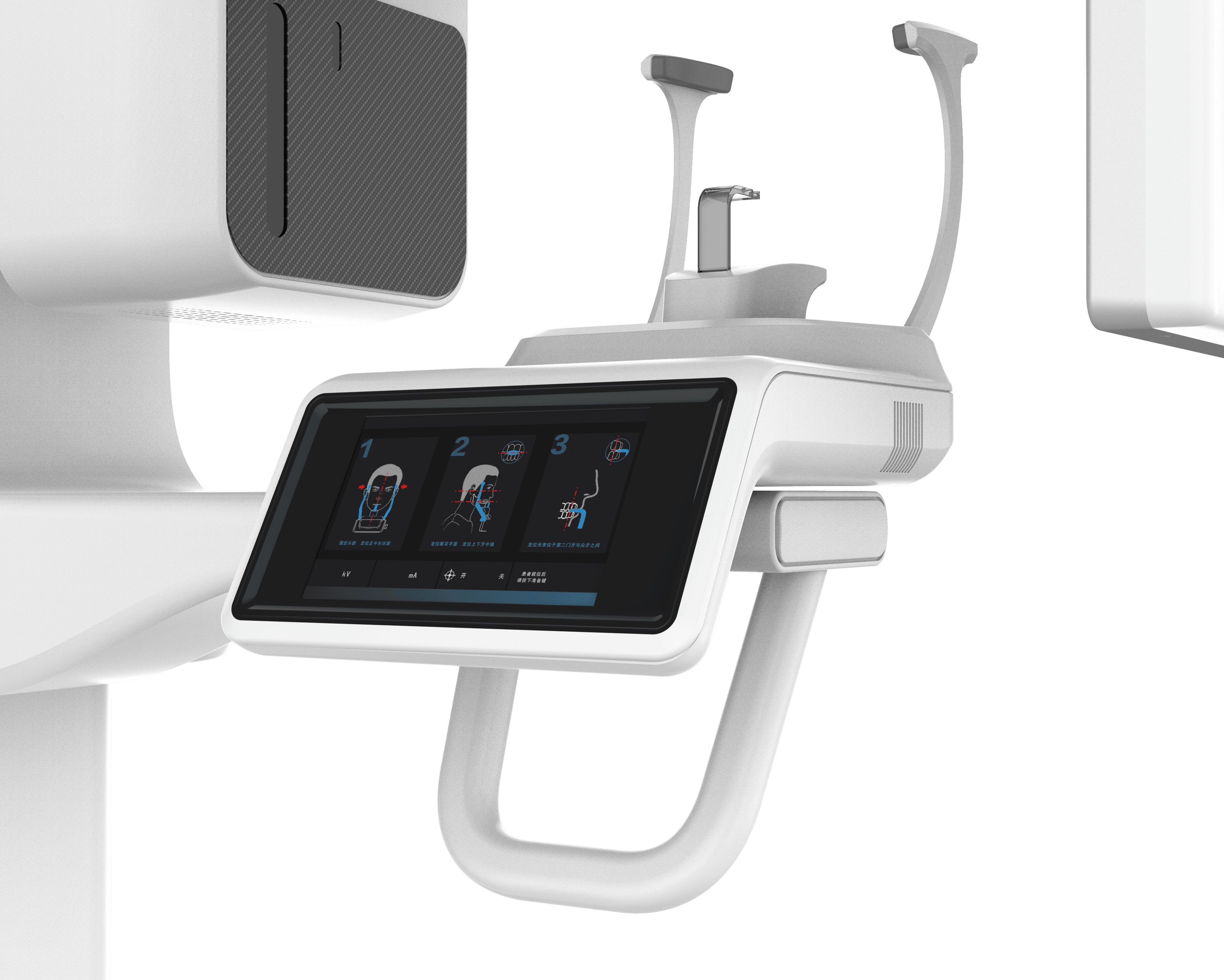

Intuitive Touchscreen
Simplified shooting program guides operators through scan selection, patient size (child/small/medium/large), FOV choice, and exposure settings in a streamlined workflow.

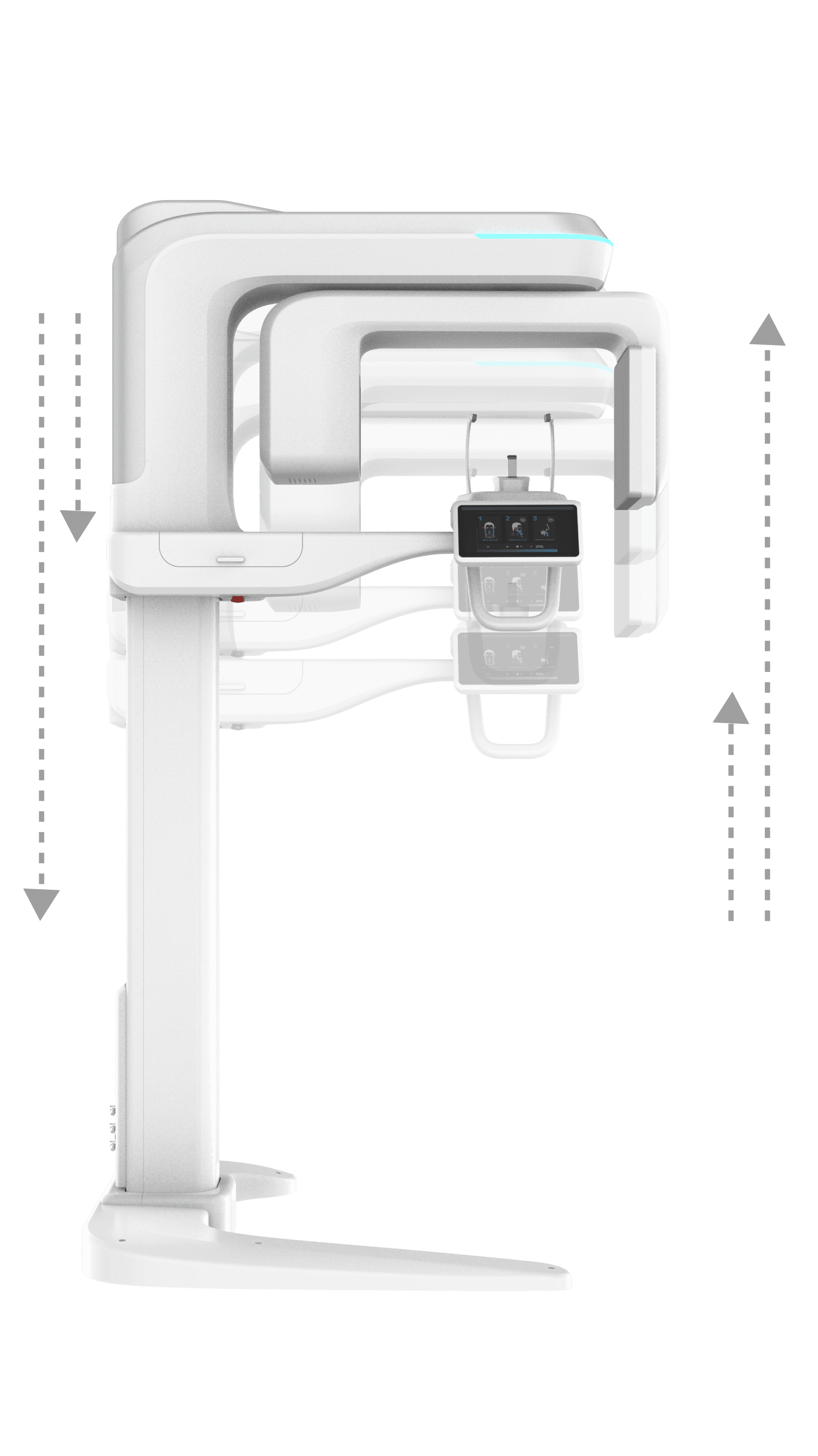

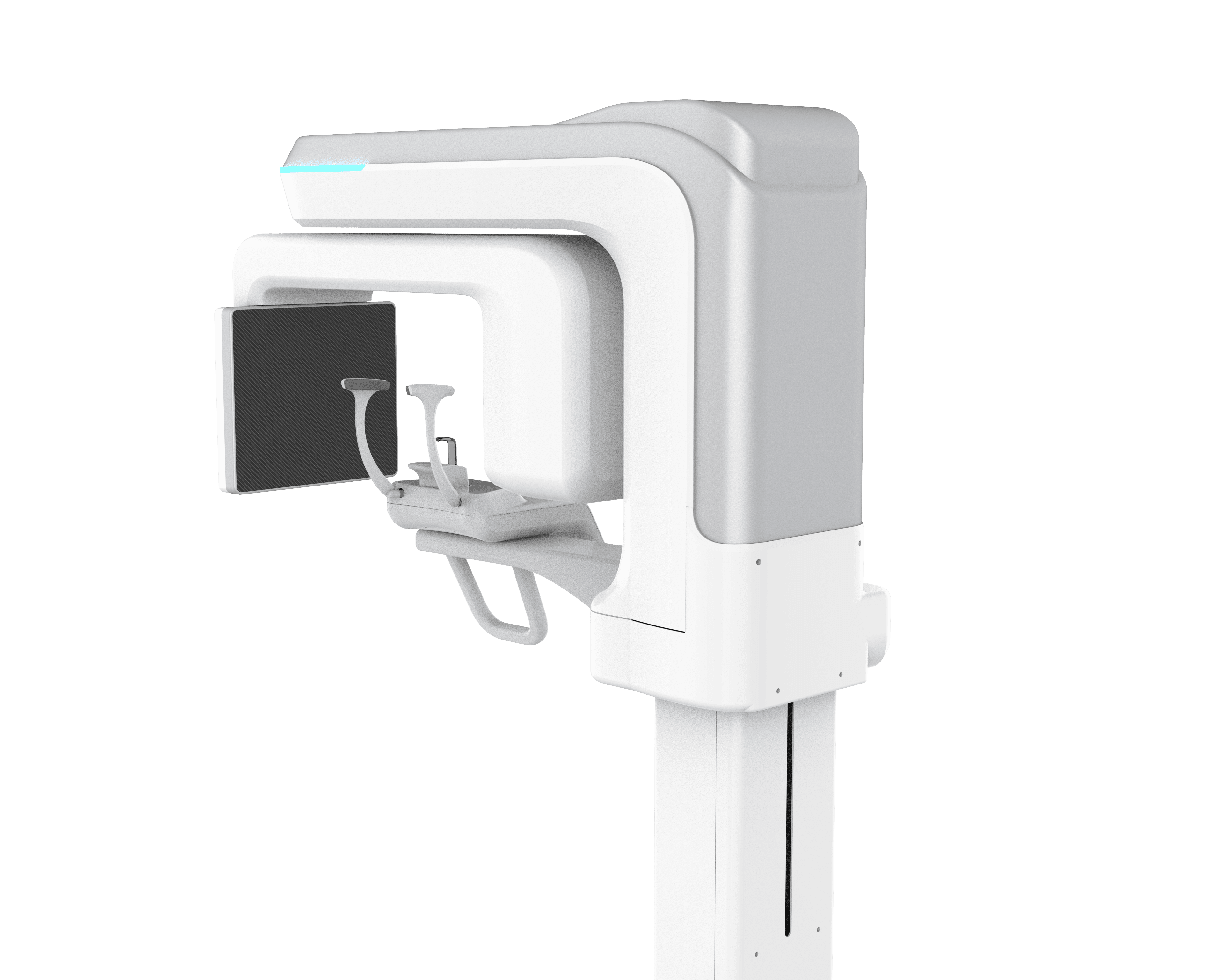

Motorized U-Arm
800 mm column lifting stroke with 540° U-arm rotation. Chin rest adjusts vertically (60 mm) and longitudinally (60 mm) for precise, reproducible patient positioning.

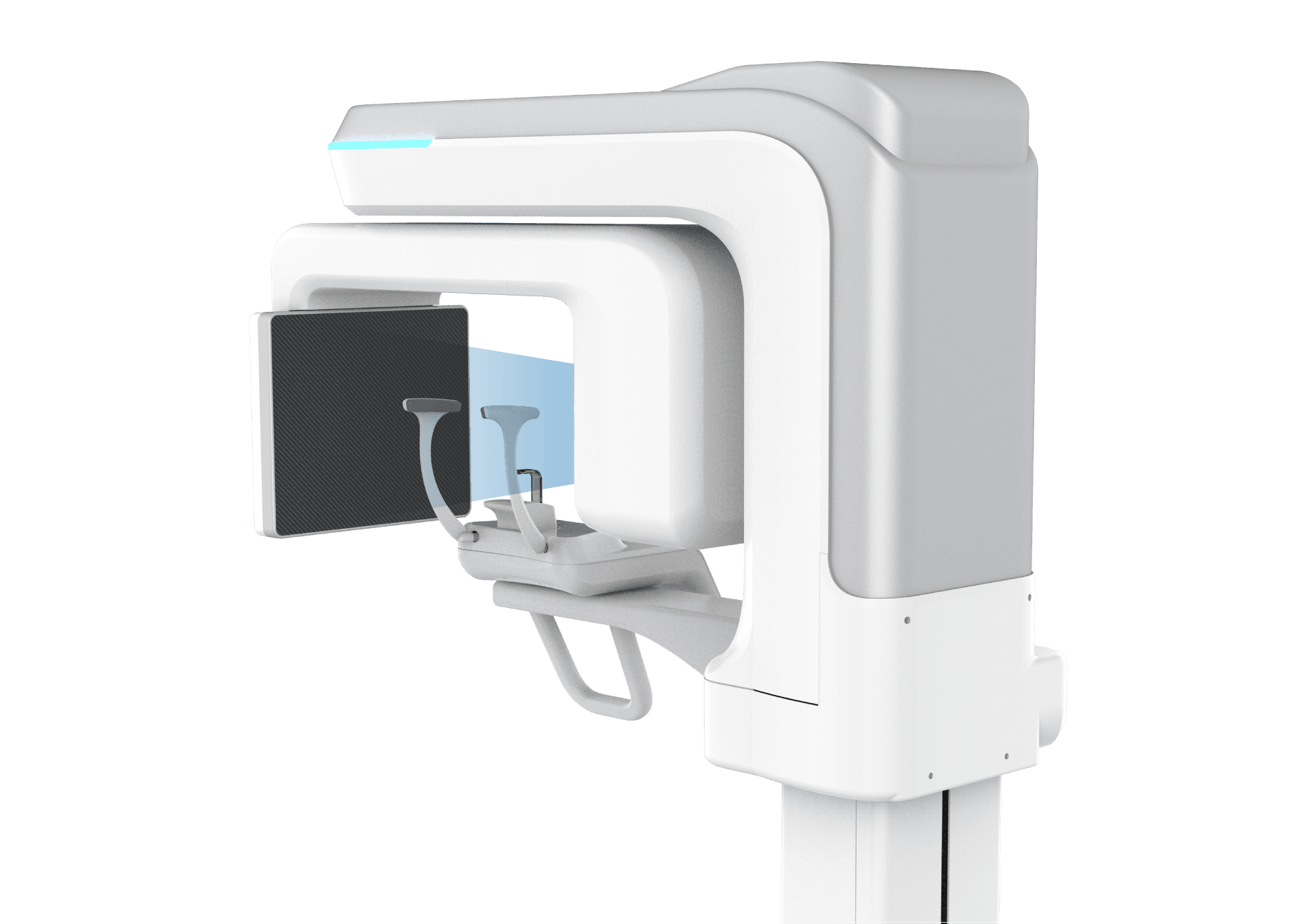

Large Flat-Panel Detector
250×300 mm active area with 100 μm pixel pitch and 16-bit AD conversion captures high-resolution volumes across all FOV sizes in a single rotation.
Field of View
Four FOV sizes to match every clinical application — from single-tooth endo to full-skull sinus and TMJ imaging.
High-res 70 μm voxels for root canal detail
Single quadrant or localized imaging
Complete upper or lower arch coverage
Full skull — largest FOV available
Patient Positioning & Adjustability
U-Arm Height (800 mm)

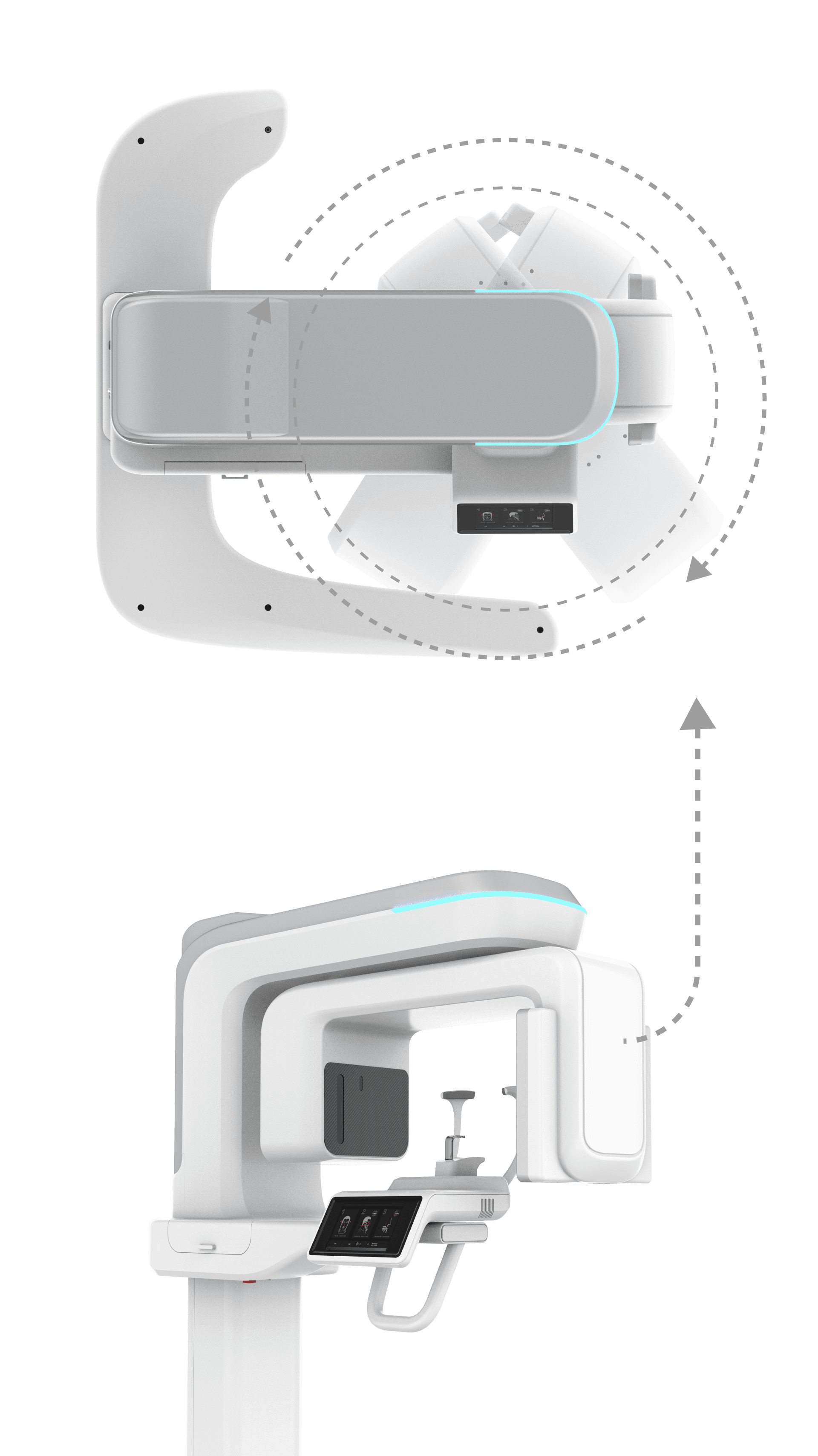

U-Arm Rotation (540°)

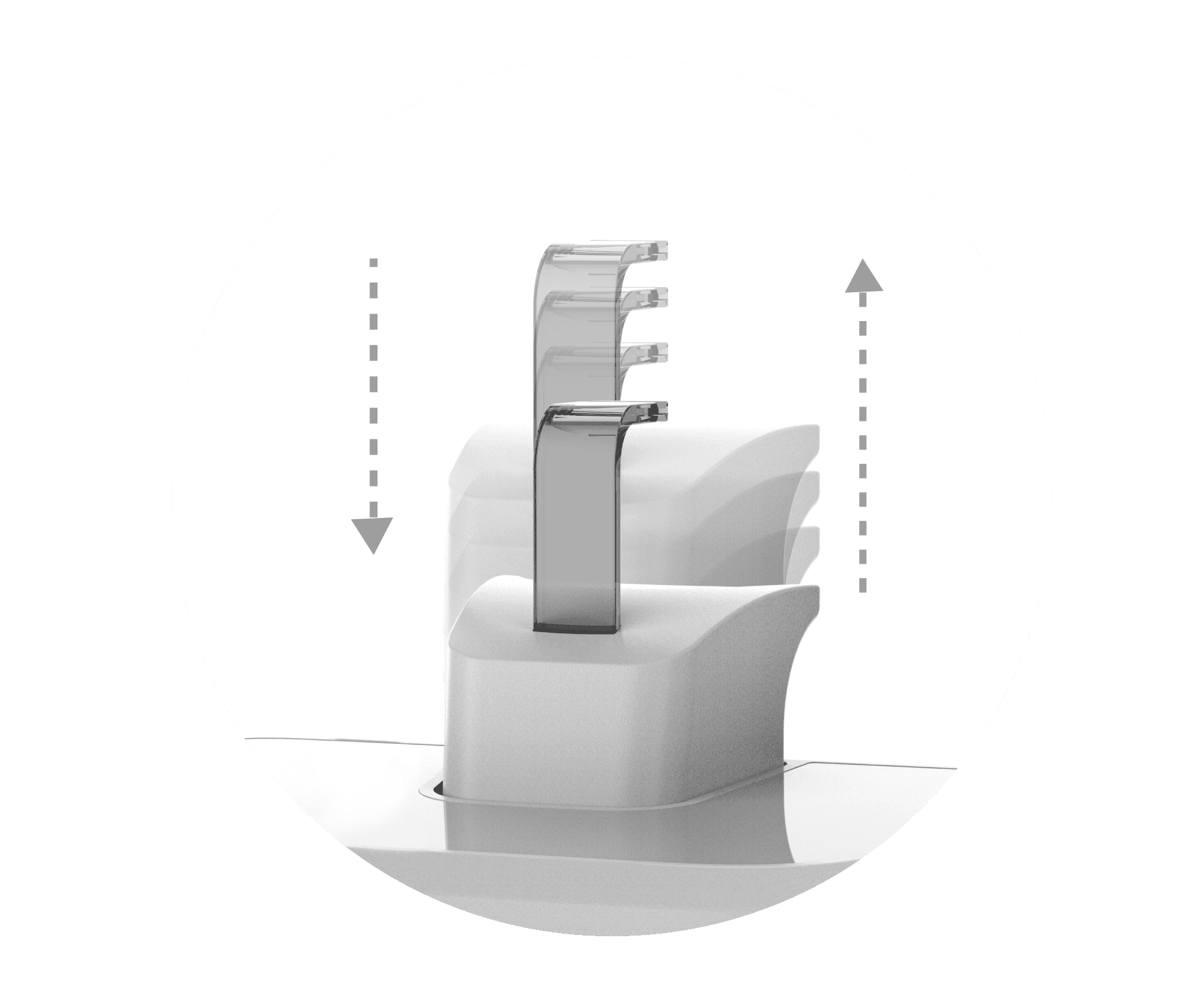

Chin Rest Height (60 mm)

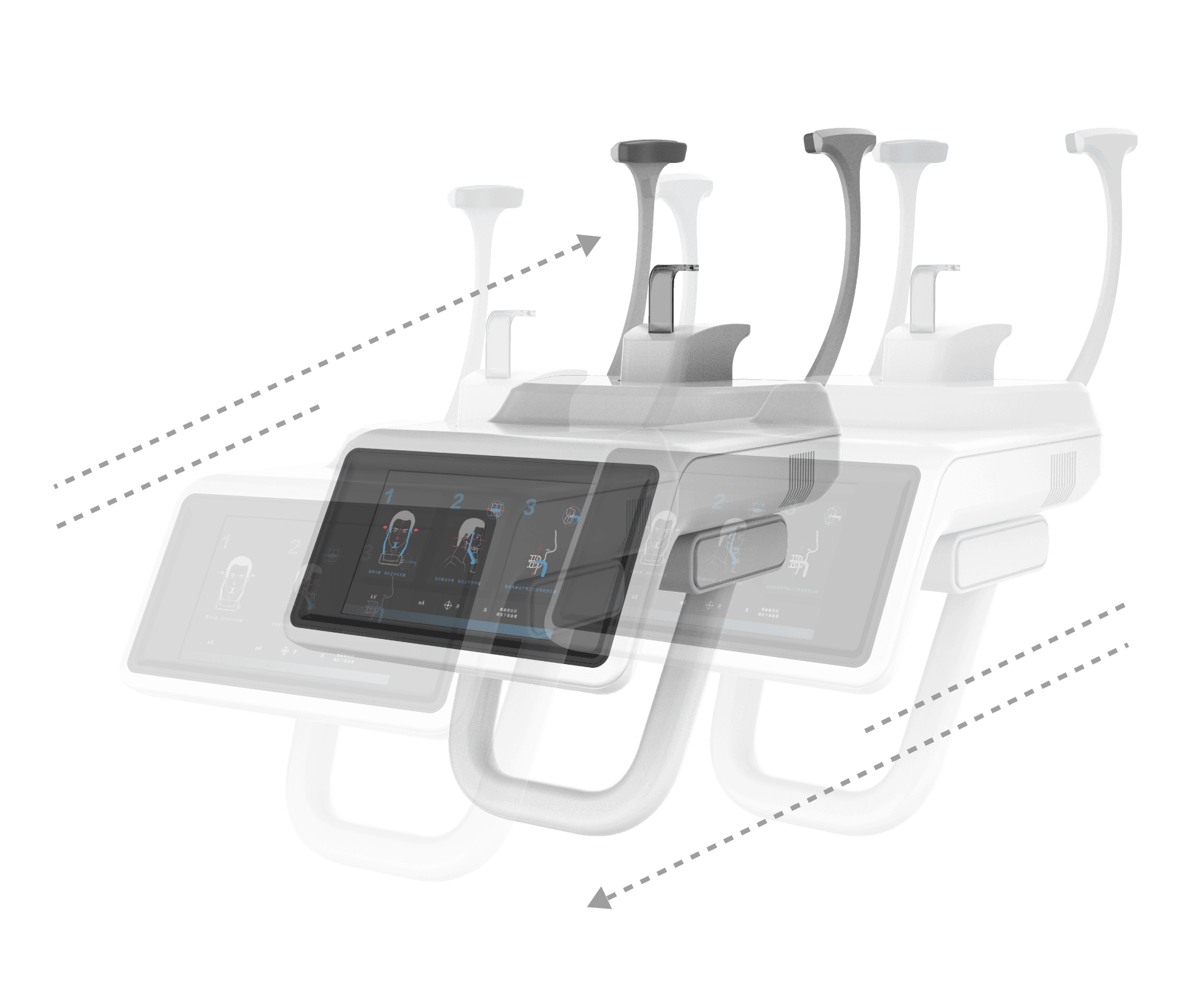

Chin Rest Position (60 mm)
Clinical Image Samples
Sample scans demonstrating CBCT, implant planning, nerve canal tracing, TMJ analysis, airway evaluation, and cephalometric imaging.

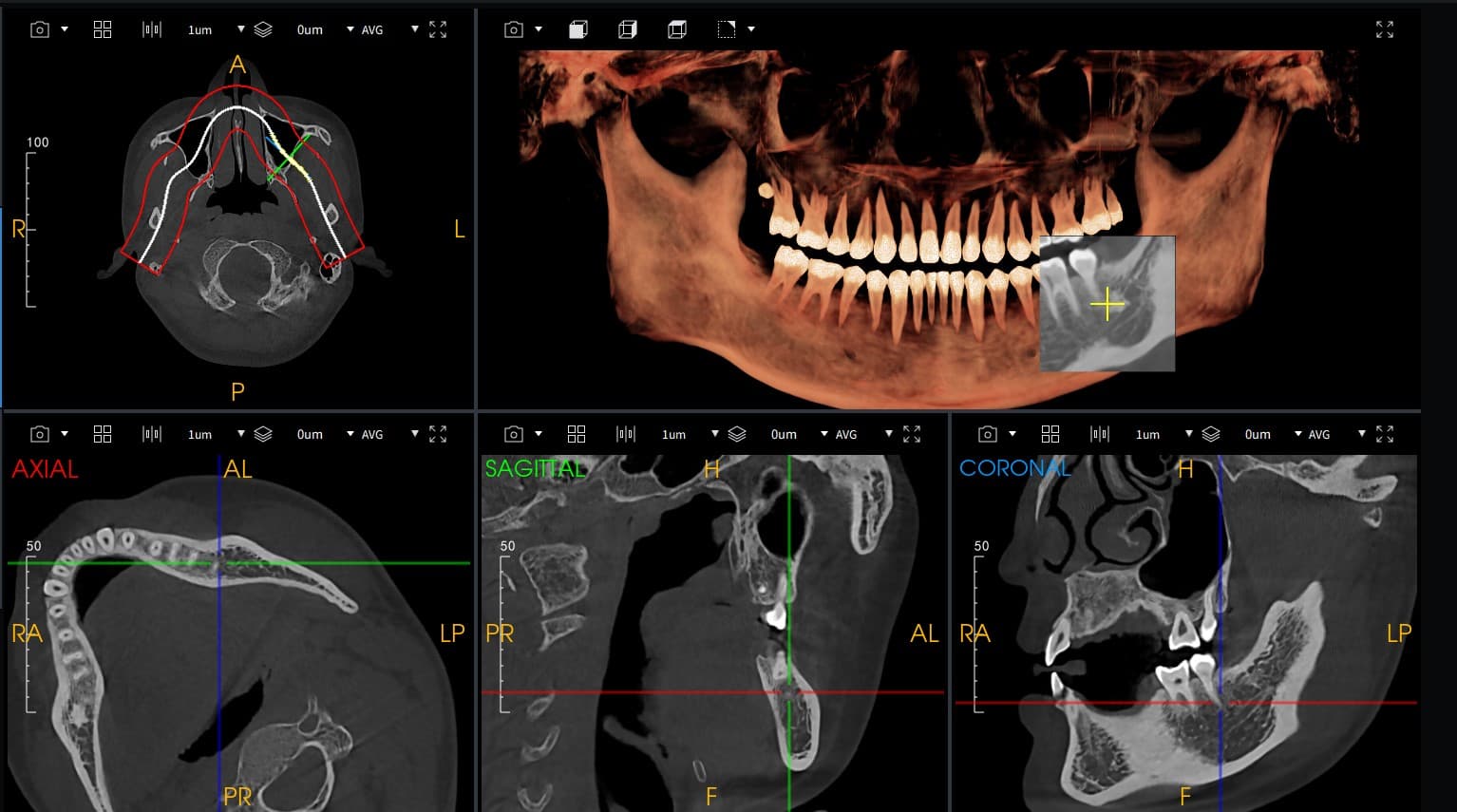

CBCT Quad-View — Axial, 3D, Sagittal, Coronal

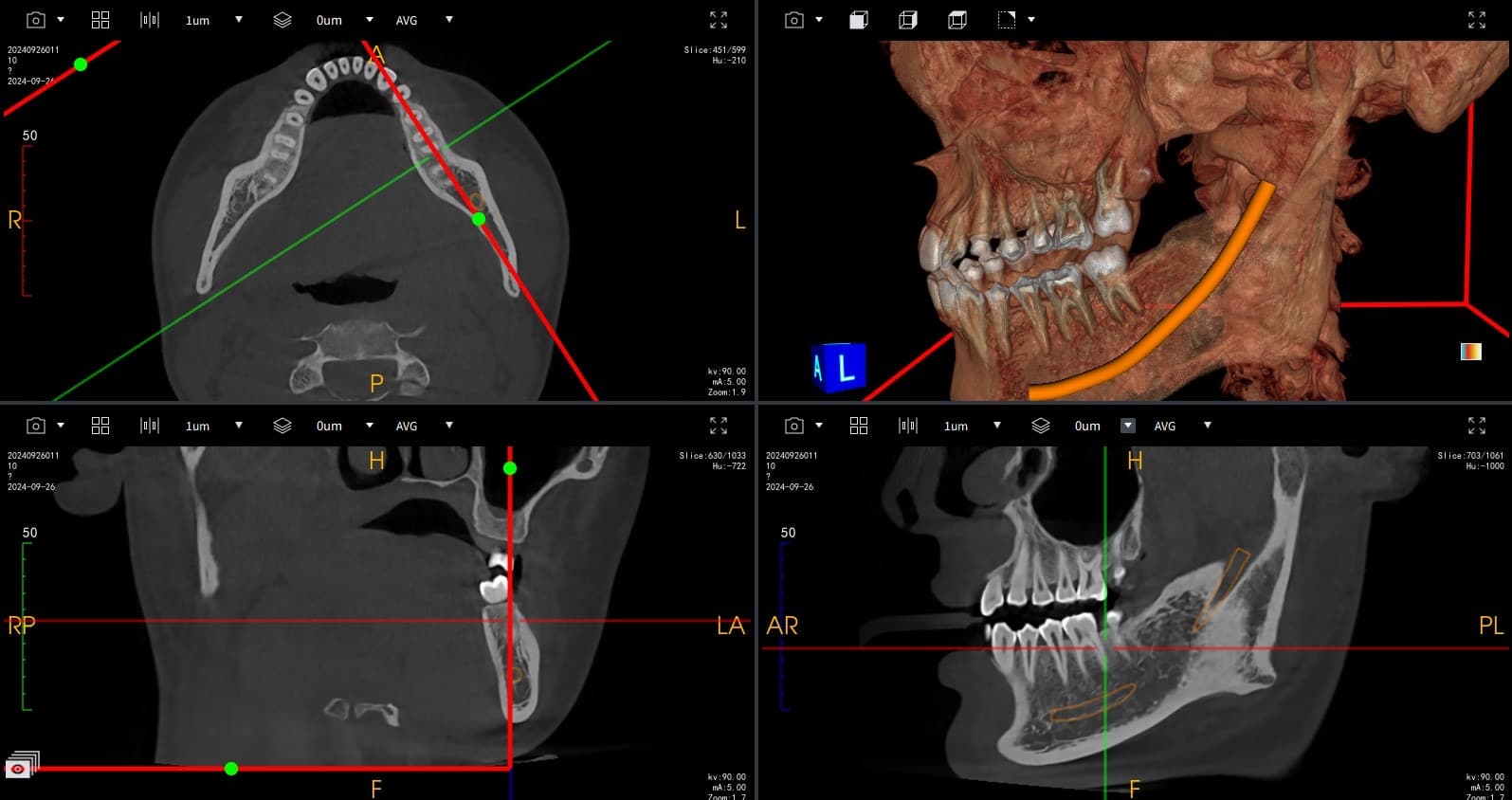

Nerve Canal Tracing with 3D Rendering

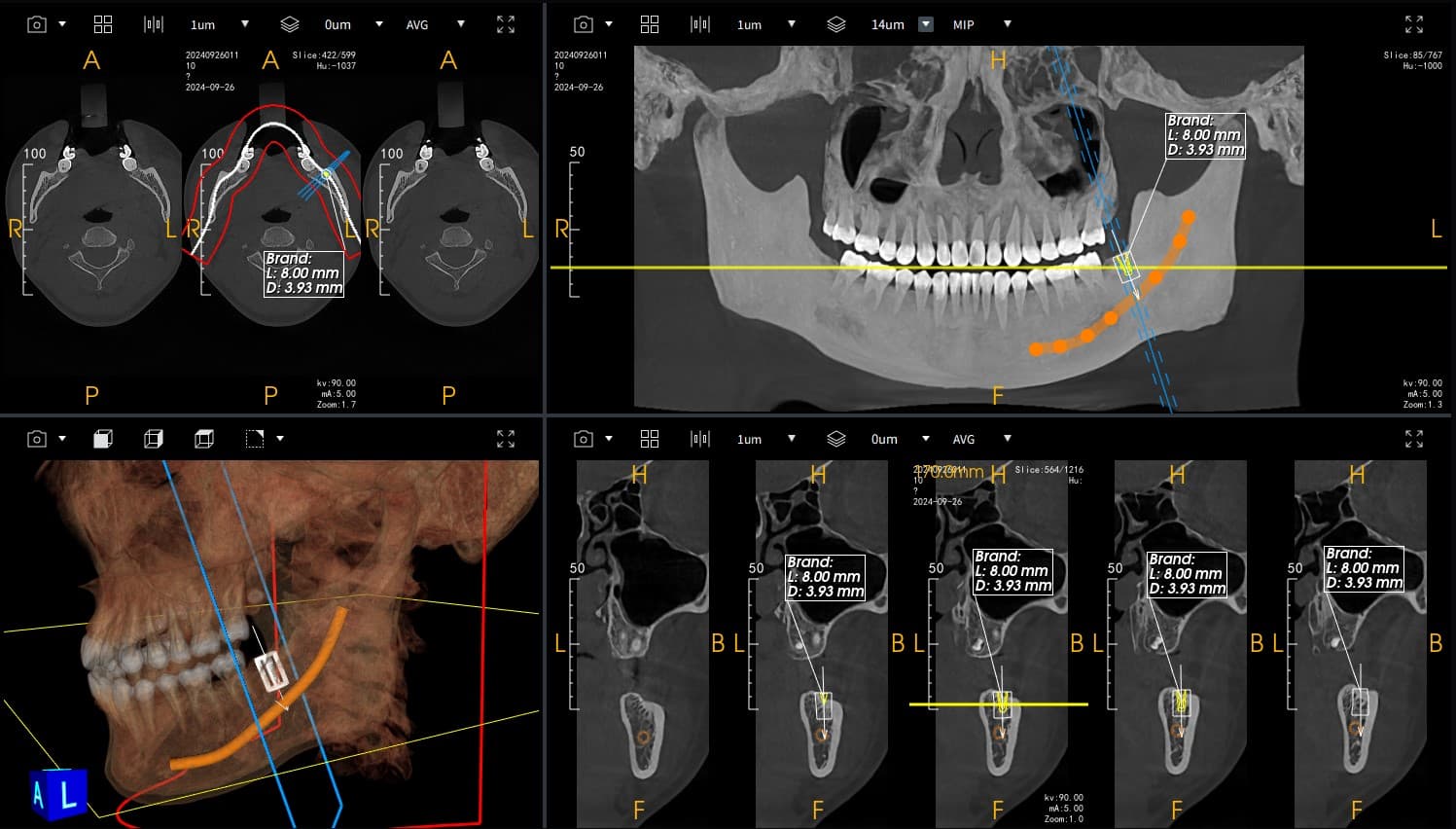

Implant Planning with Cross-Sections

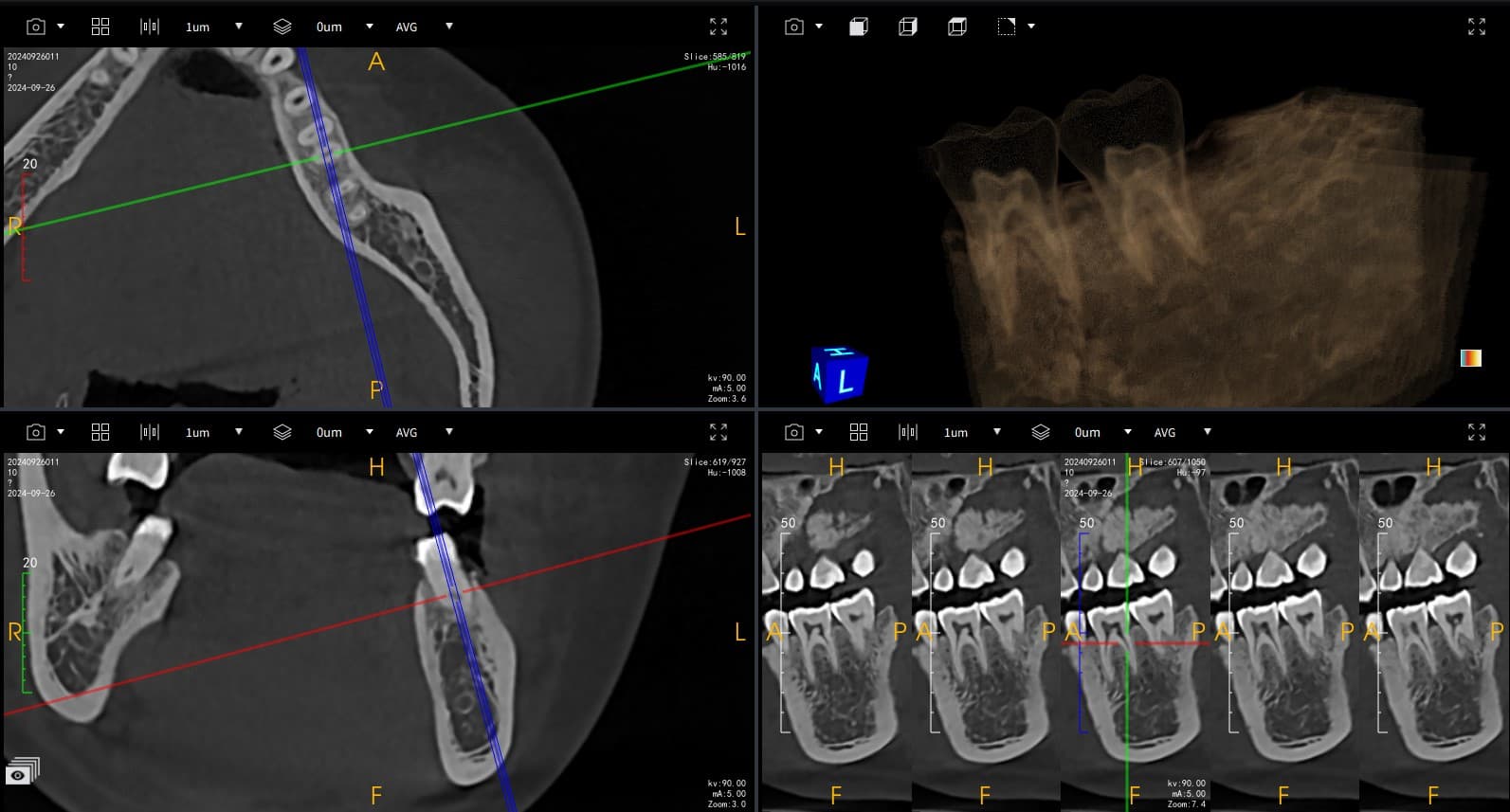

Implant Cross-Section Detail

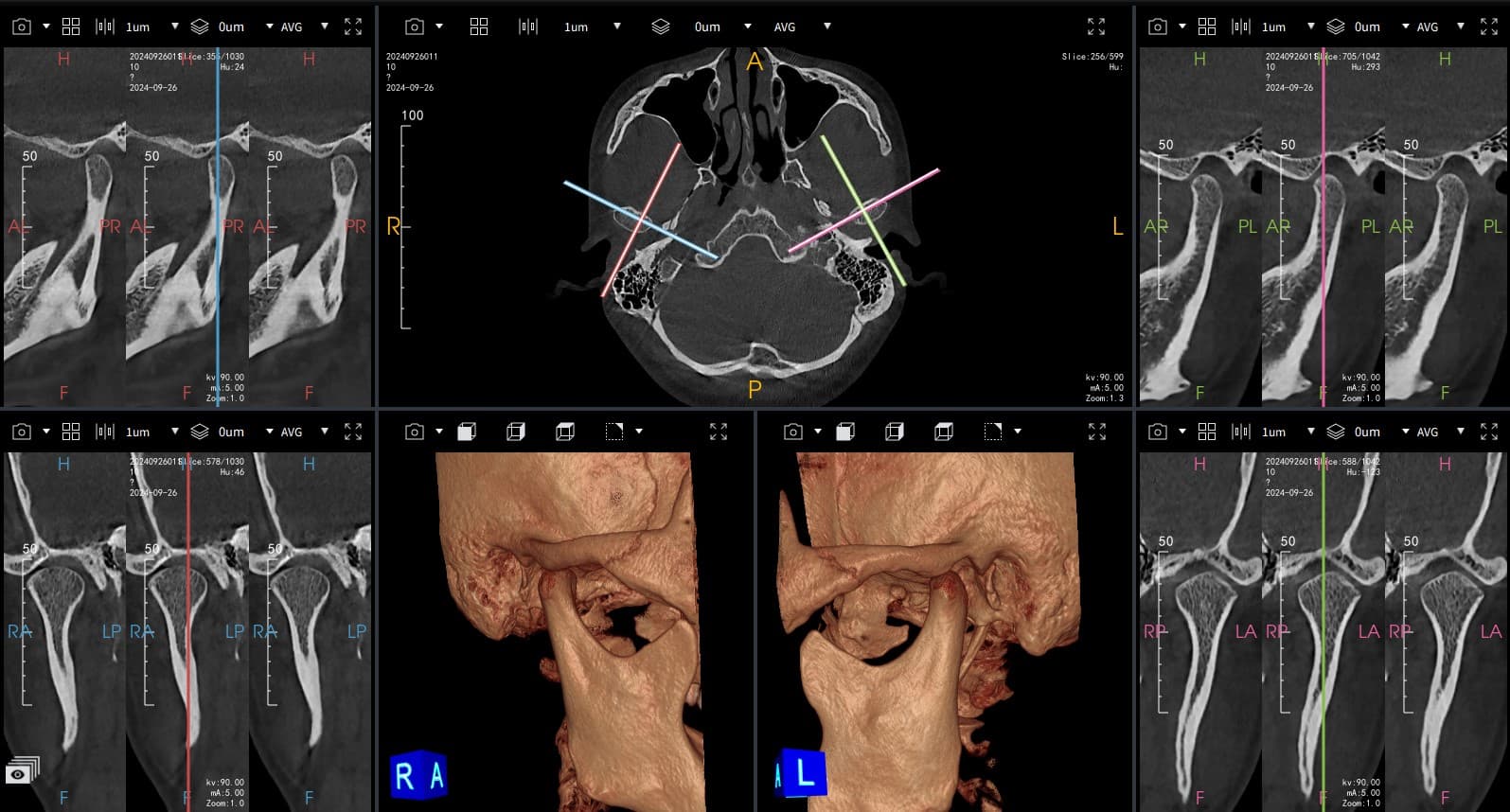

TMJ Bilateral Analysis

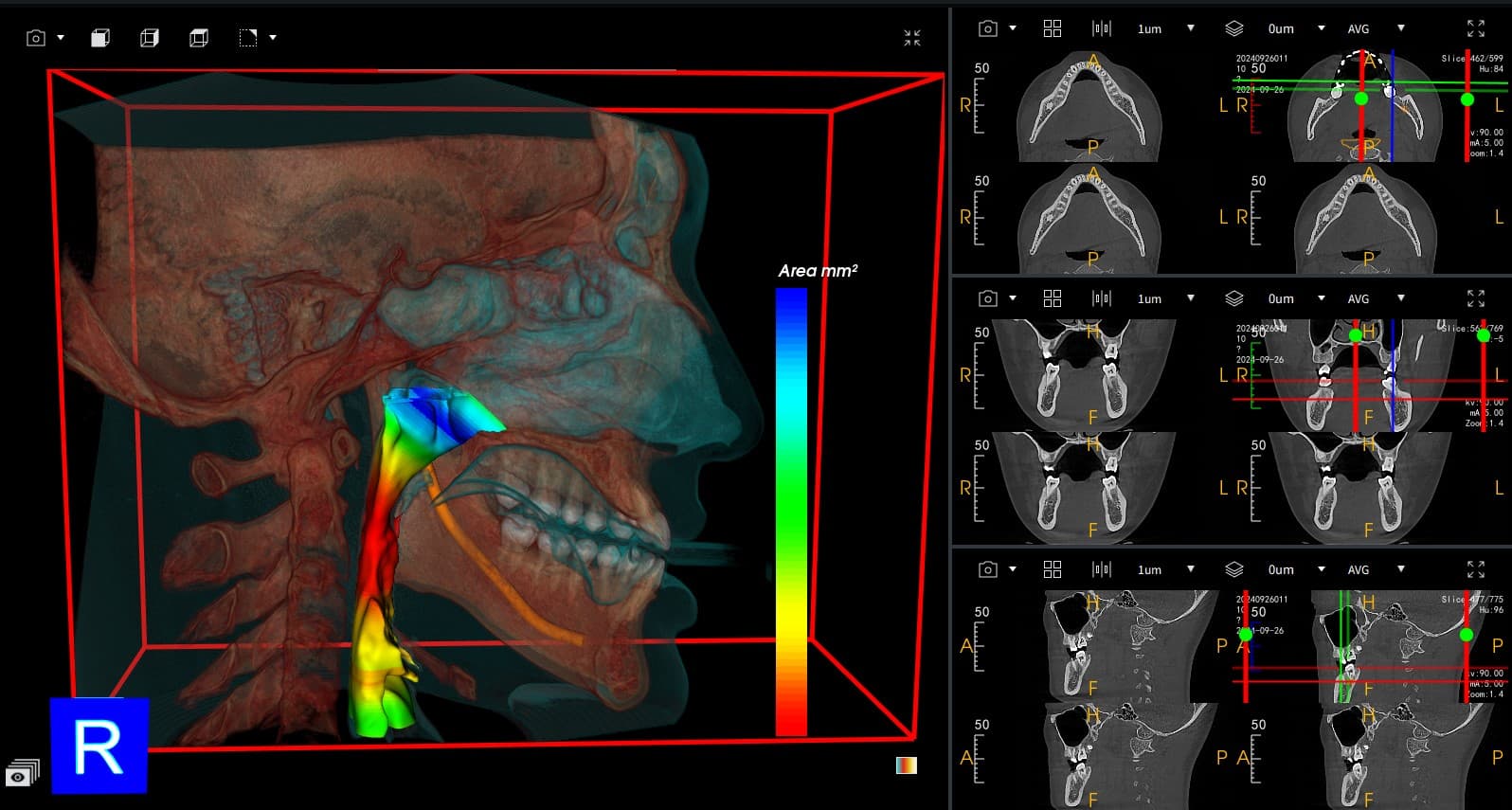

Airway Volume Analysis

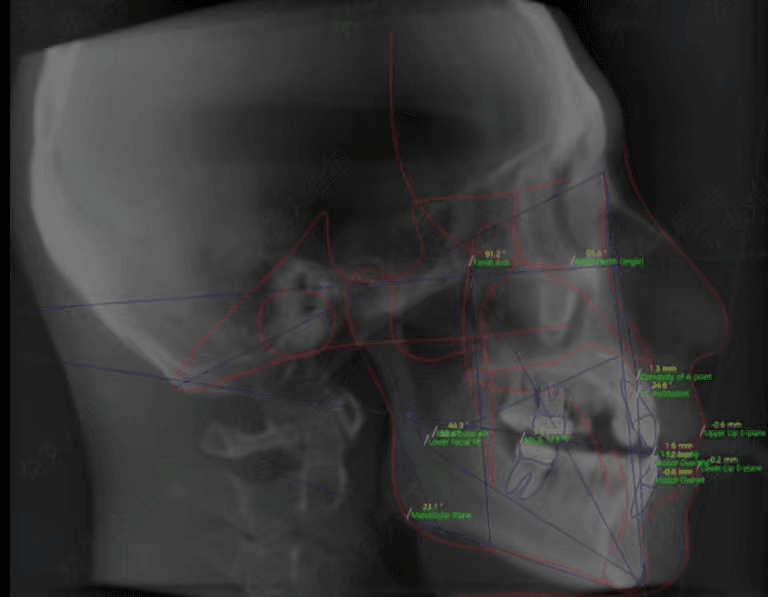

Cephalometric Landmark Analysis

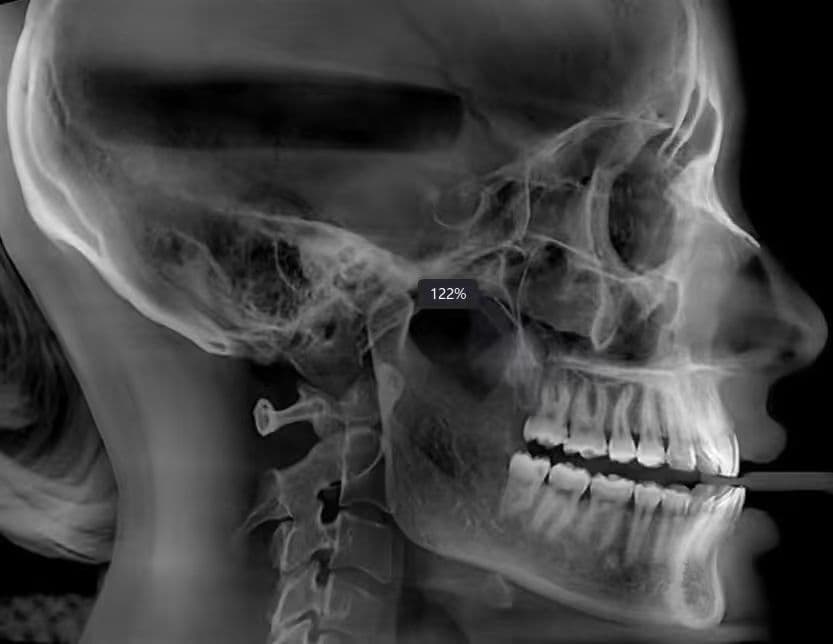

High-Resolution Lateral Ceph
Technical Specifications
